Documents the bb plugin API as an annotated map of the product plus the generated reference behind it. - apps/web/scripts/generate-plugin-api-docs.mjs parses the SDK's committed bundled declarations into a committed model; --check fails when stale. - packages/plugin-api-map holds the surface inventory, the bb UI skeletons, and the annotation cards, shared so the docs page and the in-app plugin cannot disagree about what bb can be extended with. - plugins/plugin-api-docs renders that map inside bb as a nav panel, with the host's real composer embedded in the composer and home diagrams. - The docs page leads with the reference; the diagram sits below it as a supporting explainer. - An anatomy manifest pins the skeletons to the real app component order, and apps/app's docs-anatomy-manifest test fails when the app reorders. - apps/web route changes animate through the View Transition API, content only, with reduced motion falling back to an instant swap. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
These changes were already uncommitted in this worktree when the plugin API docs work began and are unrelated to it: blog rendering, landing analytics and endpoints, connect/auth routes, server token handling, and small web UI primitive tweaks. Committed separately so they can be reviewed or dropped on their own. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>

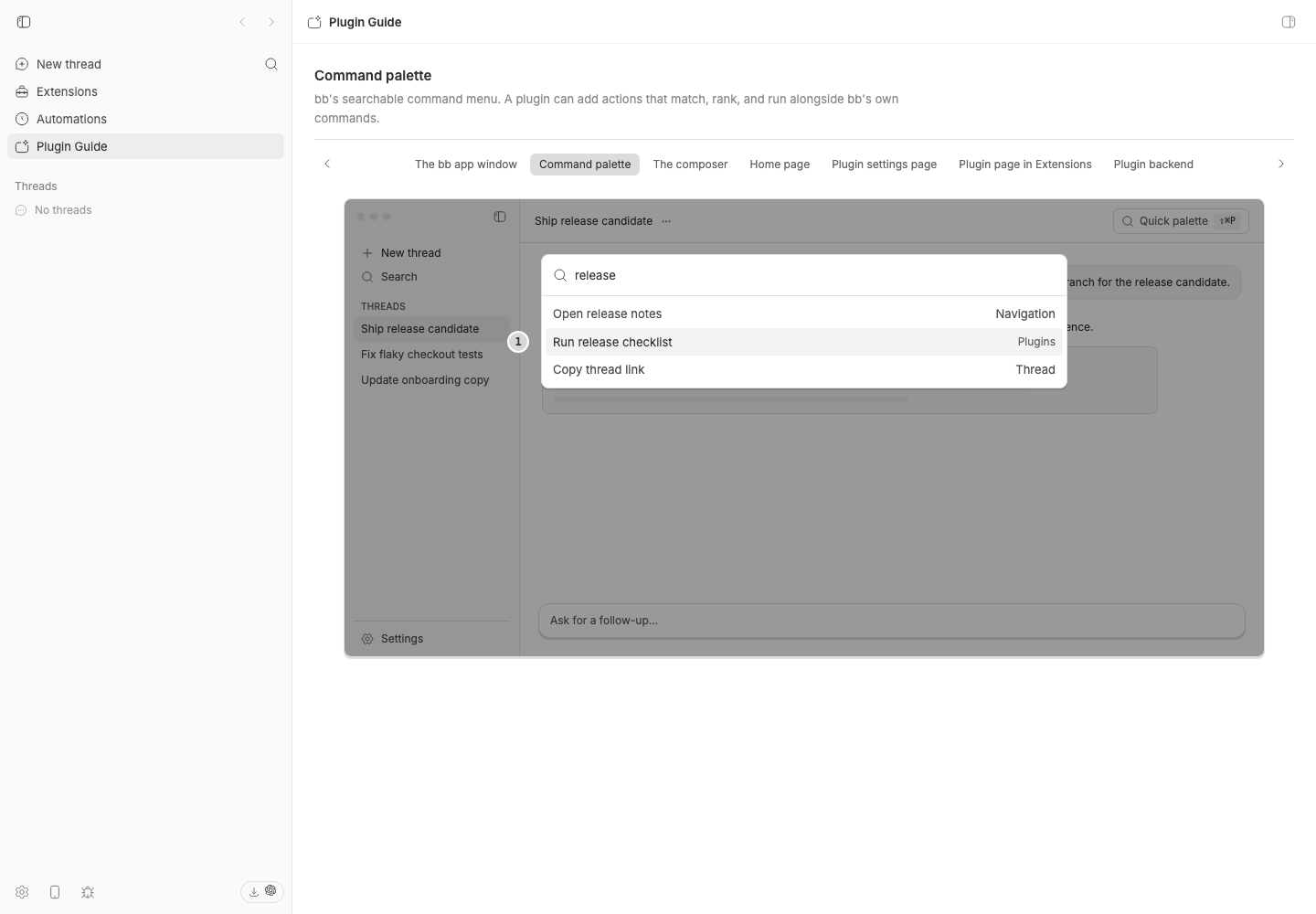

The bb Plugin Guide (plugins/plugin-api-docs, rendering packages/plugin-api-map) becomes bb's only plugin API documentation: six slides — annotated skeletons of the app window, composer, home, settings, and Extensions plugin pages, plus a backend capability grid — with a reviewed card per surface, cross-references, and "Used by" links. packages/plugin-api-map/test/api-sync.test.ts fails the build when the map and the SDK drift apart; the apps/web docs route, generated API model, and generator are deleted in its favor. Host and SDK changes the guide rides on, all additive: - experimental_suppressPluginUi on experimental_NewThreadComposer, plumbed through the new-thread prompt box path, so an embedded composer can render without other plugins' composer UI (a prompt improver's action was landing inside the diagrams and rewriting the persisted example draft). - Route anchors inside plugin UI navigate client-side; links to a plugin's Extensions page open it beside the current pane. - New plugin-detail pane kind so a plugin's Extensions page can live in a split; ordinary navigation to it stays full-window. - Plugin CSS is awaited before registrations publish, removing the unstyled first-paint flash on plugin load and reload. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…-ready-thr_kg7xb7qipg
…-ready-thr_kg7xb7qipg
…-ready-thr_kg7xb7qipg # Conflicts: # apps/web/src/styles.css
…l-fixes-thr_7f4g7pd89a # Conflicts: # apps/app/package.json # pnpm-lock.yaml
brsbl
added a commit
that referenced
this pull request
Aug 24, 2026

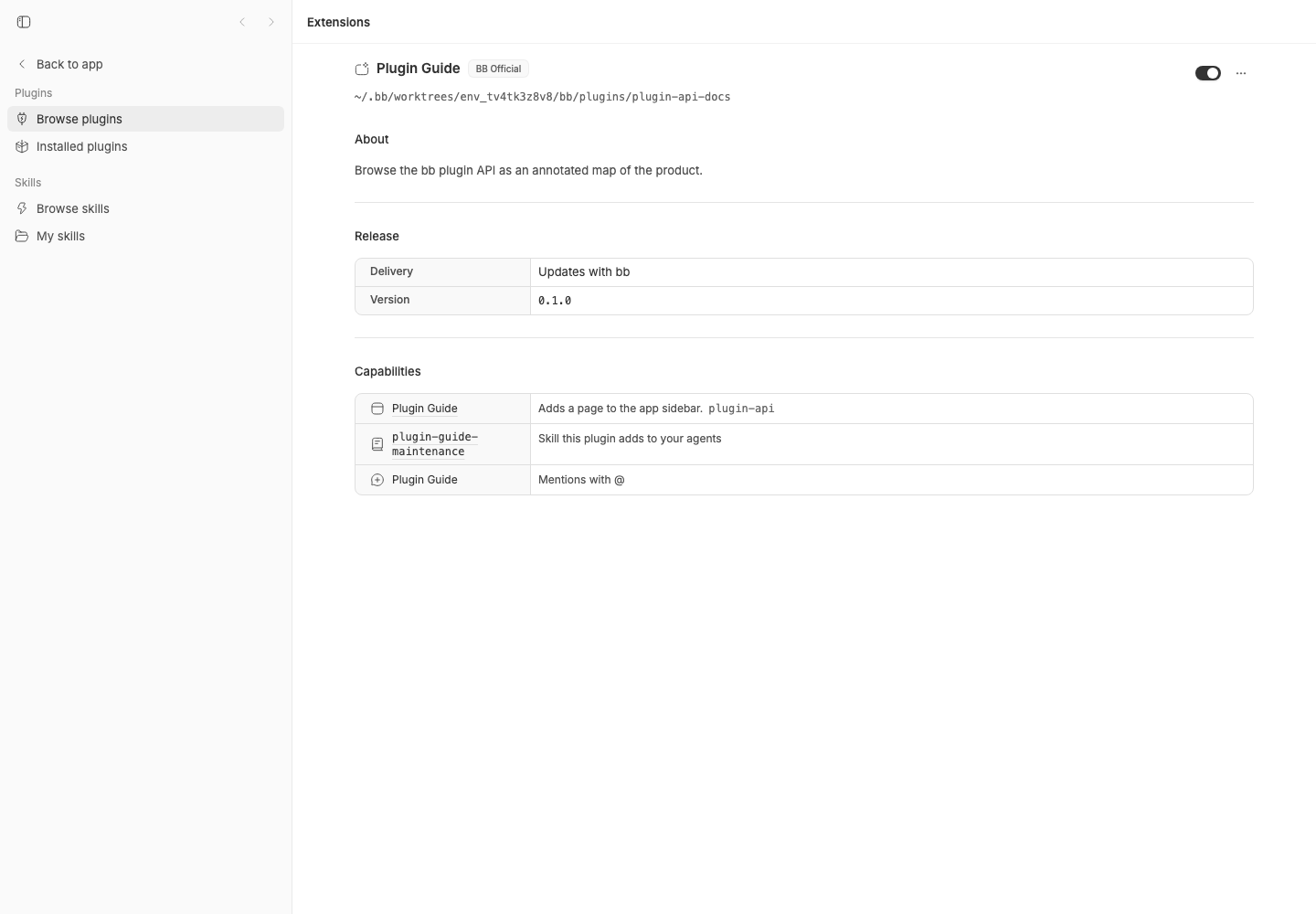

Review of the cumulative Plugin Guide branch found three defects: - P0: the full-window /extensions/plugins/:pluginId page rendered the plugins overview instead of the detail page. SplitWorkspaceRoute owns that URL under a path="*" route, so ToolsView's useParams() could never see the plugin id. ToolsView now takes the id as an explicit prop (like PluginDetailPaneView already does) and SplitWorkspaceRoute passes the id it derives from the URL. Regression test added under the production catch-all mount. - P1: the persisted-0.4.8-scaffold upgrade test pinned PLUGIN_SDK_VERSION to 0.4.18 and failed against main's 0.4.20. The assertion is now relational (newer than the frozen fixture), which is what the upgrade test actually means. - P1: the composer-plus-menu, provider-picker, and composer-actions highlight rings were authored in the prompt box's coordinate space but rendered in a wrapper whose bottom edge is the sub-composer strip, landing ~22px below their targets. The rings now render inside the prompt box's own relative context in StaticEmbeddedComposer. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The Extensions page already labels the plugin BB Official, so the bb prefix in the display name was redundant. The plugin id, package, and route (plugin-api-docs) are unchanged; only the user-visible name, the mention label, the clipboard pill context, and the maintenance-skill heading change. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…y-thr_6n85axkwev # Conflicts: # apps/app/src/components/ui/app-route-anchor.tsx
- Add the fidelity sources wireframes.test.ts and maintenance-skill.test.ts actually read (ThreadDetailView.tsx, plugins/plugin-api-docs/**) to the @bb/plugin-api-map#test turbo inputs, so edits to them can no longer cache-hit a stale pass. - Delete the dead ComposerWireframe export (replaced by RealComposerAnnotated; the package is private and it had no consumers). - Reorder the flat headless surface array to match the rendered section order, so card Previous/Next never jumps between sections; assert order equality in surfaces.test.ts. - Open a followed cross-reference's card on the pan's own transitionend (state-driven, superseded by any newer pan and cleaned up on unmount) instead of an uncancelled setTimeout that duplicated the CSS duration. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Collapse the Guide's seven annotation mechanisms into one placement system with zero per-instance coordinates: - Mark/RegionMark chips take a declared placement variant (corner, corner-inset, side, outside-above) from one CHIP_PLACEMENT_CLASS owner, replacing every authored chipClassName offset. - MeasuredBadge replaces GuideBadge, OverlayMark, RightPanelTabBadge and its geometry-duplicating layer, and CommandPaletteActionBadge: exterior, lane, and floating chips measure the element they annotate (in layout coordinates, invariant under the scale-together transform) and derive their column from the window frame's own box. - GuideHighlight is gone: the engaged ring is the target element's own styling, so it wraps content by construction. Content scripts tint the frame itself. - The composer draft line renders in flow inside the prompt box (no hand-synced overlay/reservation pair), and both composer menus anchor to the element the real menu flips against instead of authored offsets. - The app-shell fixture keeps one width owner (the gutter floor). Static tests assert existence and placement declarations; runtime- measured geometry is verified by the rendered QA sweep. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

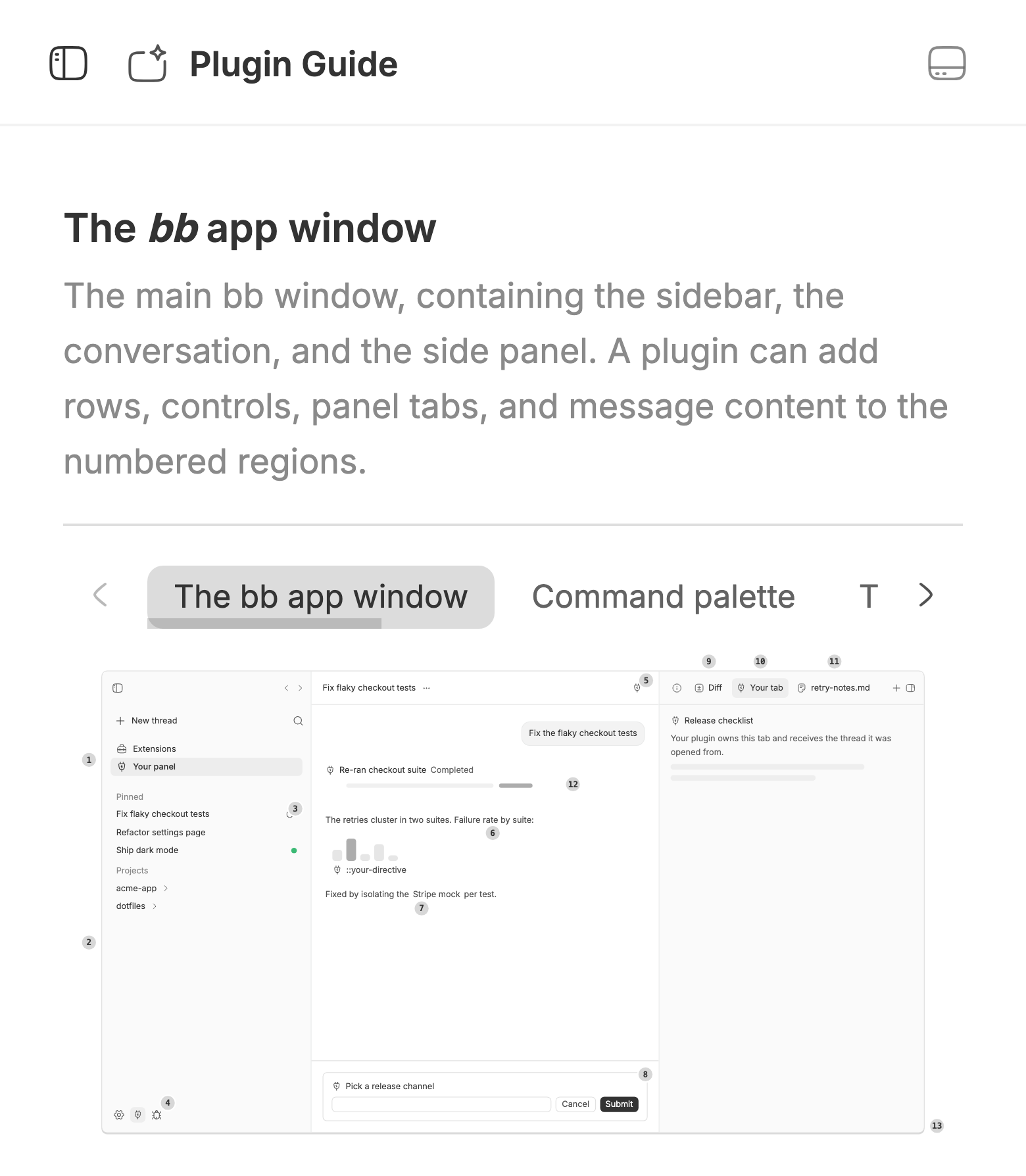

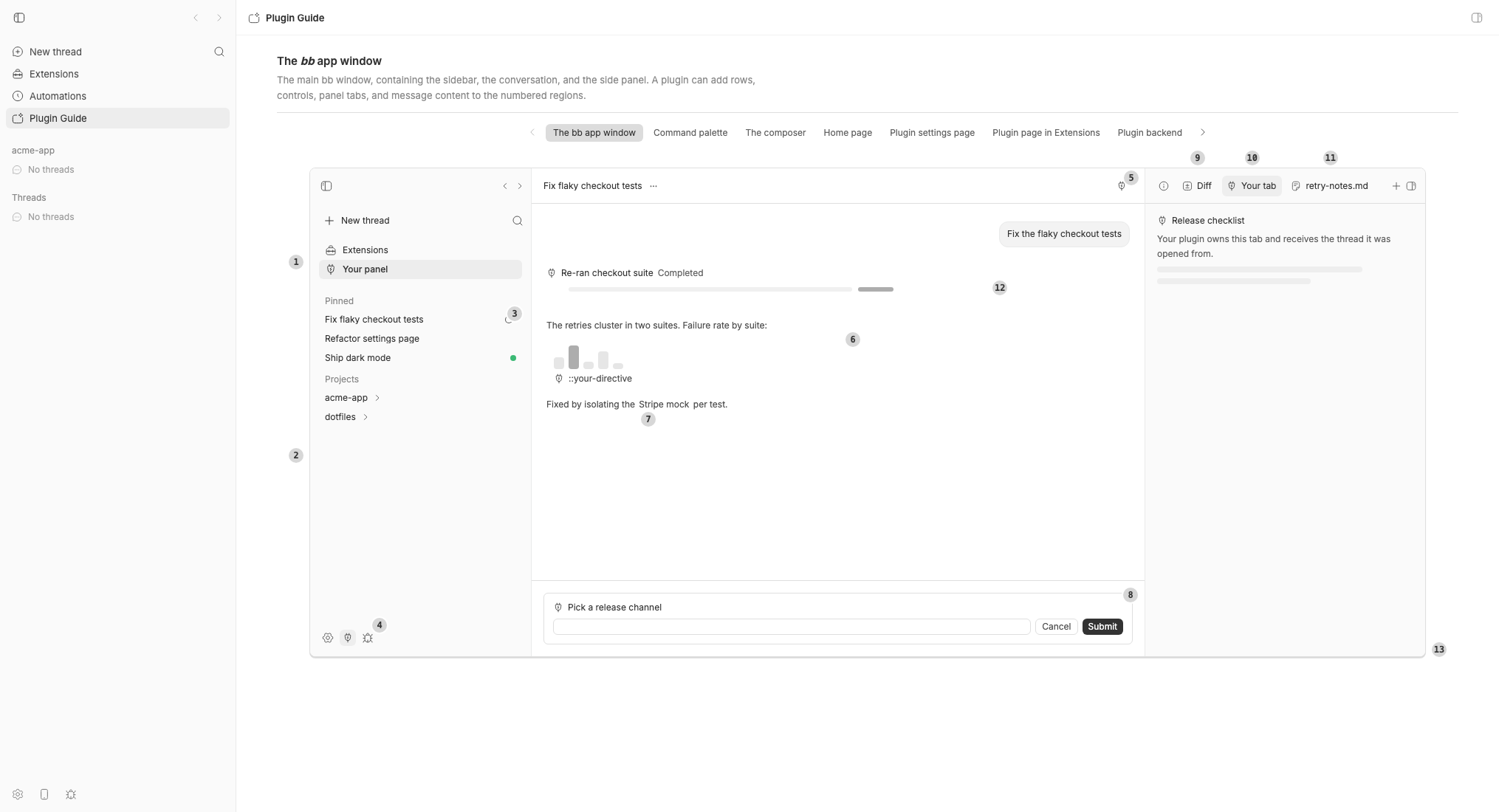

- The caret+label group shrink-wraps and centers as one unit, so the pan carets hug the page list and only reach the row's edges on real overflow. The scroller keeps sole horizontal-scroll ownership. - One content-width token (the map column) sizes the column, stage, and card so their edges align, and grows on wide displays. - The stage-to-card gap is clamp(8px, 3cqh, 28px), driven by the consumer-declared container on the plugin's scrollport; without a declared container the 8px floor holds. - spatialFixtureScale derives from both axes with a 1.3 legibility cap: fixtures shrink under pressure and grow on roomy panels (the squished-on-large-displays fix). Available height is measured scroll-invariantly from the declared scrollport, strictly upstream of anything the scale resizes, and the height reserve is unconditional. - Fixtures declare one authored height each; the 100dvh-minus-chrome clamps (frozen guesses of app chrome) are gone. - The maintenance skill's geometry checklist now states the derivation contracts (variant/measured chip placement, two-axis scale, derived gap) instead of the retired constants. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Ship scripts/verify-guide-chrome.mjs with the maintenance skill: a Chrome-for-Testing sweep that discovers every rendered annotation on every page at four viewport classes, reconciles them against the declared inventory (a missing annotation cannot pass silently), and asserts relationships — badge bounds and topmost hit-tests, engaged rings on targets, transient clearance, caret-to-label adjacency, scale bounds with zero page overflow, the 8-28px gap clamp on the in-flow card, and the wide-viewport fill gate. Two placement fixes the sweep caught on its first run: - A measured badge whose container sits inside the clipping window frame (the palette dialog on a narrow panel) now clamps into the frame's interior instead of hanging past its edge into nothing. - The composer + menu's bottom margin is the outside-above chip lane (CHIP_SIZE + CHIP_GAP), so the open menu clears the draft line's chips by construction. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Main's 0.40.0 release prep advanced @get-bb/plugin-sdk to 0.4.22 with declaration changes in ., ./app, and ./testing/app (no new public export — every subpath still maps to its Guide surface, 73/73 including api-sync). The stale-inventory failure only surfaced now because the turbo-inputs fix invalidated the cache that had been serving pre-bump declarations. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Main's iOS-first mobile redesign now requires every mobile icon name except the brand marks to map to an SF Symbol; this PR's AiBrowser (the Plugin Guide's sidebar glyph) predates that gate. 888/888 mobile tests pass with the mapping. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

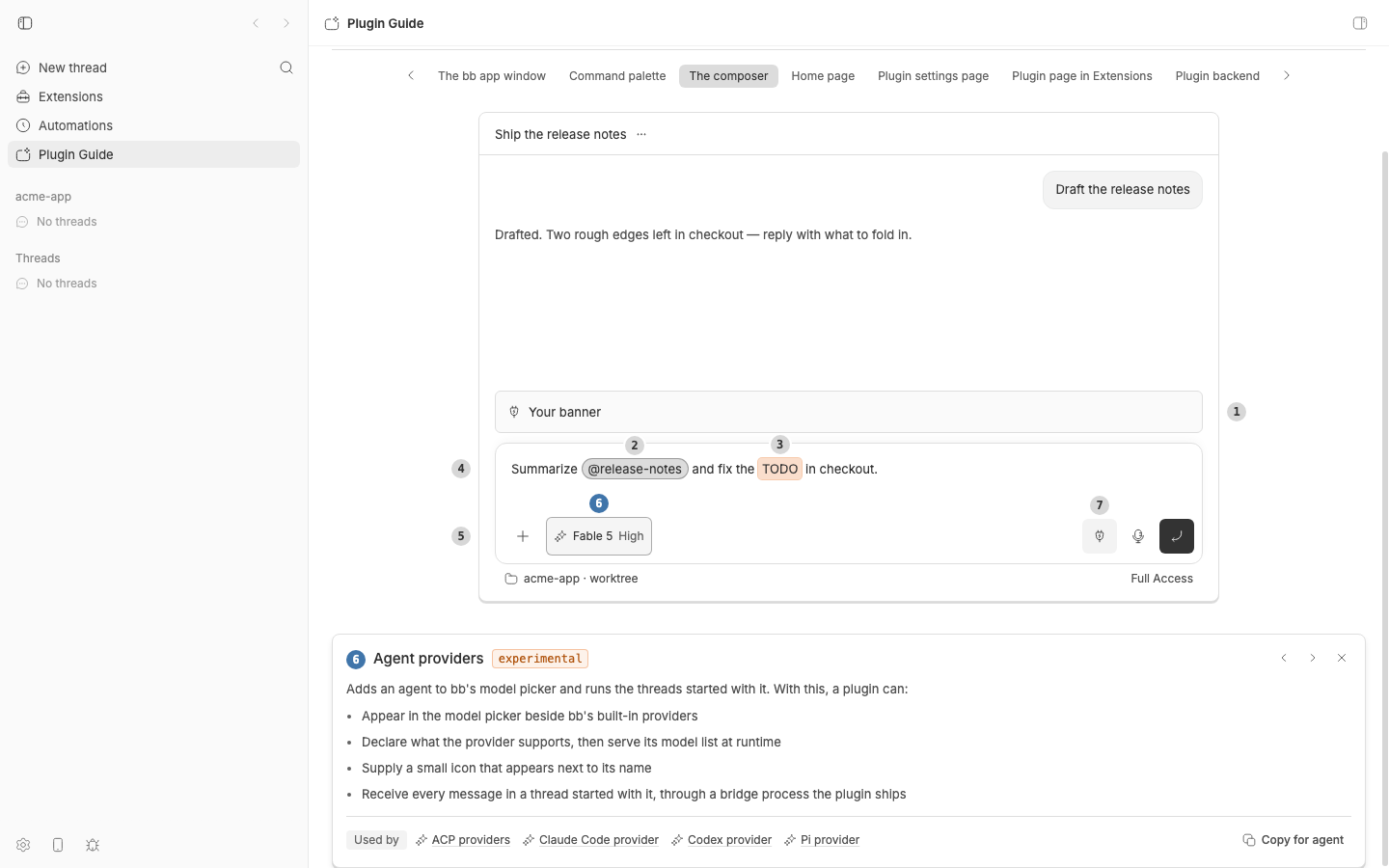

Opening a card pinned its bottom flush to the fold at every size — the fixture consumed all available height, so the card's visible band was a viewport constant (reading as a fixed-height card) and opening one scrolled the page chrome away. The open in-flow card's footprint (height plus its gap margin) now subtracts from the fixture's available height, so the fixture makes room, the card ends where its content ends, and the page never scrolls on open. The sweep asserts both: open card fully above the fold and scrollTop stays 0 at desktop widths. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Summary
Adds the built-in Plugin Guide (
plugins/plugin-api-docs, renderingpackages/plugin-api-map): an interactive, annotated map of every public plugin surface, drawn as the real bb UI. Each numbered annotation opens a capability card with the authoritative SDK symbols, first-party usage, and a Copy for agent action that pastes a structured, composable surface reference into the composer.What's in it

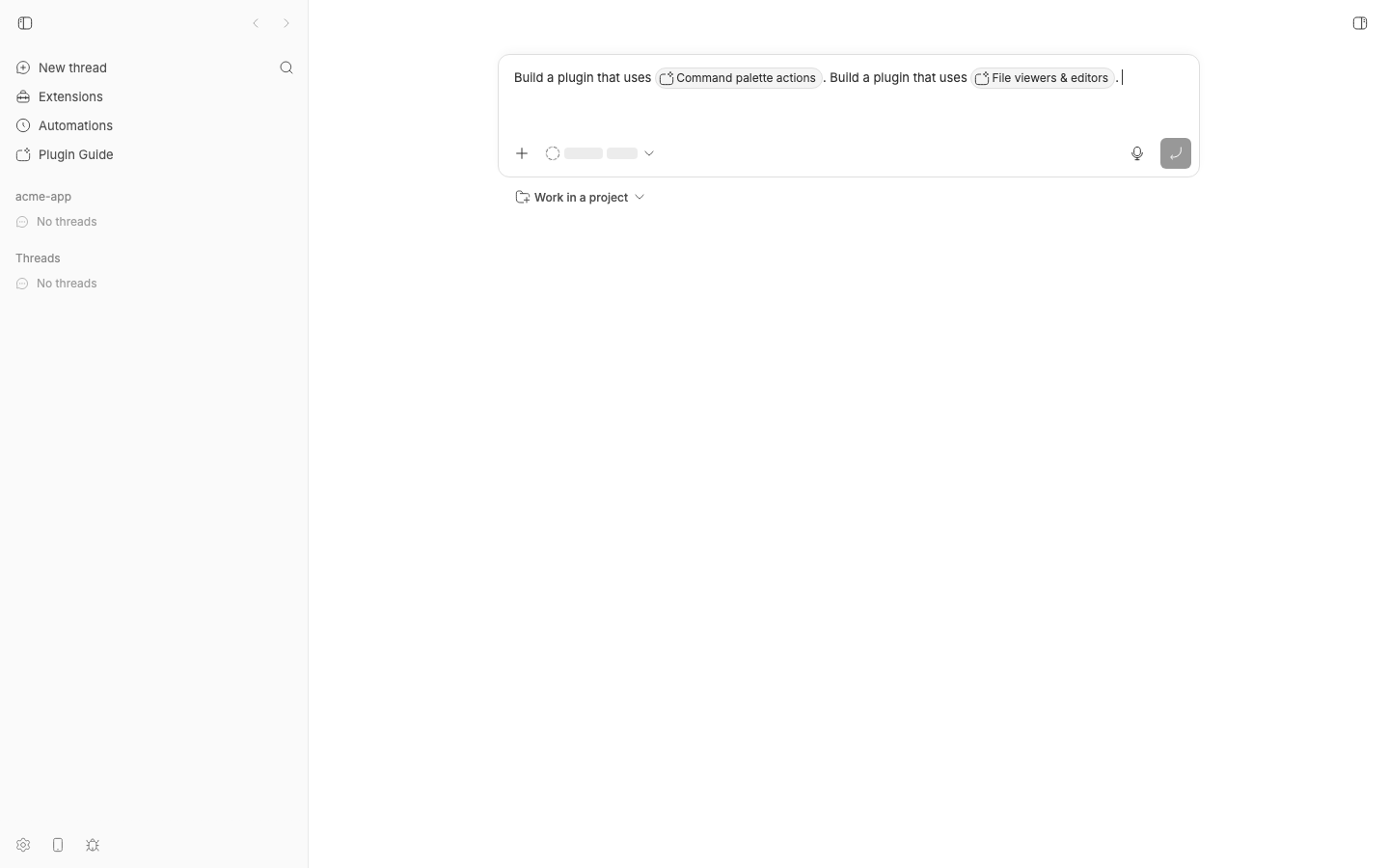

Build a plugin that uses+ a structured pill +.; multiple copies paste as distinct, composable pills.api-sync.test.ts— CI fails if a public SDK export,app.slots.*method, orBbPluginApiproperty changes without a matching Guide surface.plugin-guide-maintenanceskill ships with the plugin and encodes the fidelity/annotation/copy workflow.plugin-api-docs.e97545201..7e2ca90bf): one annotation placement system replaces seven mechanisms — chips take declared variants or measure the element they annotate, the engaged ring is the target's own styling, and transients anchor to what the real menu flips against. Pan carets hug the page list; the stage-to-card gap isclamp(8px, 3cqh, 28px); fixtures scale from both viewport axes up to a 1.3 cap (large displays render them proportionally larger); the100dvh-minus-chrome guesses are gone. A committed relationship sweep (plugin-guide-maintenance/scripts/verify-guide-chrome.mjs) discovers every annotation at four viewport classes, reconciles against the declared inventory, and asserts relationships instead of exact pixels.Review
One authorized final review ran on the cumulative branch; its P0/P1 findings are fixed in
bc30d52cc, P2 notes are recorded as follow-ups and intentionally not implemented:/extensions/plugins/:pluginIdrendered the plugins overview: the URL is owned bySplitWorkspaceRouteunderpath="*", souseParamsnever carried the id.ToolsViewnow takes an explicitpluginIdprop; regression test added under the production catch-all mount.PLUGIN_SDK_VERSIONto0.4.18; it now asserts the relational contract (newer than the frozen fixture).Verification
Head
8a6bb0ac3= review fixes + display-name rename + the layout-derivation overhaul + clean merges of currentmain(SDK 0.4.22 inventory regenerated; the Guide's AiBrowser icon mapped to an SF Symbol for the new mobile gate).@bb/plugin-api-map73/73 (incl. api-sync and the migrated structural annotation contracts), app routing 30/30, clipboard/paste/mention 120/120, server plugins 29/29 on Node 22; Turbo typechecks pass; exact-checkout plugin build passes.8656827: all 7 pages and 26 cards, responsive states 390×844 → 3440×1440, sole-scroller and clearance contracts, highlight-ring geometry (each ring contains its target's center inside the prompt box), command-palette flow, and the full-window detail page. Later commits on the head are main-only merges (no UI/Guide files).bc30d52cc.Screenshots
