Phase 1b — Hierarchy traceability in GitHub Projects

[TellMeAlex]

Phase 1b — Hierarchy traceability in GitHub Projects (flat columns only — NOT tree/nested rows)

Status: Phase 1 of the RFC is shipped and verified end-to-end against CodigoSinSiesta/1 (real data, real Orca dev build). Two real bugs were found and fixed during verification — see below.

Scope correction (2026-07-15): this delivers Parent issue / Sub-issues progress / Tracks / Tracked by as flat, read-only table columns — a count (0/3) and a link to the parent, on the same row as every other item. It does not render sub-issues as indented/nested child rows under their parent (no tree, no expand/collapse). That capability is explicitly Phase 3 in the RFC (docs/reference/2026-07-14-github-projects-hierarchy-traceability-design.md §8), gated behind its own design review, and is not started. If your acceptance bar for "hierarchy support" includes visual nesting, this issue is not yet complete for that bar — treat it as Phase 1 done, Phase 3 (nested rows) still to be scoped.

Summary

Makes Parent issue, Sub-issues progress, Tracks, and Tracked by render from GitHub's authoritative data in Orca's Project table view. This data lives on the linked Issue object (Issue.parent, Issue.subIssuesSummary, Issue.trackedIssues, Issue.trackedInIssues) — not on the ProjectV2 field-value union, which has no corresponding members as of 2026-07-14 (confirmed via live __type introspection: 12 union members, none hierarchy-related).

PARENT_ISSUE is now a clickable link to the parent issue (was plain #<number> text before). Rows are still flat — a child issue with a parent still renders as its own top-level row, not nested under the parent's row.

Two real bugs found and fixed during verification

Verifying this end-to-end (not just trusting unit tests) surfaced two bugs neither the normalizer tests nor the component tests caught, because both were integration-shaped: one broke the real GraphQL wire format, the other only showed up with real data at real column widths.

Bug 1 — Invalid // comments inside the GraphQL template broke the production query

itemContentSelection() in project-view.ts had a JS-style // Why: ... comment sitting inside the GraphQL template literal. GraphQL only supports # comments — // is an UNKNOWN_CHAR parse error. Every real fetch for a project with Issue items failed silently at the GraphQL layer (content: null for all items), and the failure looked exactly like a permissions problem, which is what I initially misdiagnosed it as.

Reproduced directly against the API:

$ gh api graphql -f query='... subIssuesSummary { total completed percentCompleted } ... // Why: ... ...'
{"errors":[{"message":"Expected NAME, actual: UNKNOWN_CHAR (\"/\") at [12, 15]", ...}]}

Fix: moved the comment above the function as a normal TS comment (project-view.ts:620-622), keeping the GraphQL template comment-free. Verified the fixed selection set against the live API (gh api graphql) — returns full content for all 15 items, including subIssuesSummary: {"total":3,"completed":0,"percentCompleted":0} for issue #37.

Why unit tests missed it: normalizeItem's tests feed hand-built RawItem objects directly — the query string itself was never round-tripped through anything GraphQL-aware. Closed this gap with a permanent regression test (see below) instead of trusting it won't happen again.

Bug 2 — SUB_ISSUES_PROGRESS cell counter was invisible at default column width

Even after fixing the query, the "0/3" counter text was rendered in the DOM (confirmed via direct query — textContent: "0/3", visibility: visible, non-zero bounding box) but was entirely clipped by overflow: hidden: the progress bar (w-16 = 64px, shrink-0) alone consumed nearly the whole 60-70px default column width, leaving no room for the counter next to it before the container's truncate class clipped it.

Confirmed the exact geometry: text span x=884.4, cell right edge x=884.2 — the text started after its own clipping boundary, i.e. 0% visible.

Fix, two parts:

1. ProjectCell.tsx — shrank the progress bar from w-16 (64px) to w-8 (32px) and the gap from gap-1.5 to gap-1, so bar + gap + counter fits in ~57px of intrinsic content width.
2. column-widths.ts (single source of truth, exported buildProjectGridTemplate) / ProjectViewList.tsx / ProjectRow.tsx / ColumnResizeHandle.tsx — added a per-dataType minimum column width (minColumnWidthFor, 96px for SUB_ISSUES_PROGRESS vs. the generic 60px floor), applied consistently at both the initial grid-template computation and the drag-resize clamp (so a user can't manually drag the column back down to a size that re-clips the counter, and the resize pair math stays conserved instead of silently growing the row's total width). ProjectViewList.tsx previously had its own duplicate grid-template builder — consolidated into the shared, tested function so the regression test covers the code path the table actually renders with, not a parallel copy that could drift out of sync.

Why component tests missed it: ProjectCell.test.tsx renders the cell in isolation (no real grid/column-width context), so toBeInTheDocument() passes even when the real column width would clip it to 0 visible pixels. Isolation tests don't catch layout-context bugs by construction — this needed a real table render at real widths. Closed with a permanent regression test on the real width-computation path (see below).

What was built

Files changed

 src/main/github/project-view.ts                                          | +100 -19
 src/main/github/project-view.test.ts                                     | +180 -1
 src/shared/github-project-types.ts                                       | +25
 src/shared/github-project-group-sort.ts                                  | +8
 src/renderer/src/components/github-project/ProjectCell.tsx               | +88 -1
 src/renderer/src/components/github-project/ProjectCell.test.tsx          | new (5 tests)
 src/renderer/src/components/github-project/ProjectRow.tsx                | +4 -2
 src/renderer/src/components/github-project/ProjectViewList.tsx           | +7 -19
 src/renderer/src/components/github-project/ColumnResizeHandle.tsx        | +9 -4
 src/renderer/src/components/github-project/column-widths.ts              | +33 -3
 src/renderer/src/components/github-project/column-widths.test.ts         | new (4 tests)
 src/renderer/src/components/github-project/group-sort.test.ts            | +3 -2
 src/renderer/src/components/github-project/project-row-filtering.test.ts | +3 -2

 13 files changed, 461 insertions(+), 33 deletions(-)

Three new fields on GitHubProjectRow.content

subIssuesSummary: { total: number; completed: number; percentCompleted: number } | null
trackedIssues: GitHubProjectParentIssue[]   // Issue.trackedIssues(first: 5)
trackedInIssues: GitHubProjectParentIssue[] // Issue.trackedInIssues(first: 5)

Defensive forward-compat union variant

| { kind: 'issue-ref-list'; fieldId: string; direction: 'tracks' | 'tracked-by'; issues: GitHubProjectParentIssue[] }

No live ProjectV2ItemFieldValue union member maps to this today (12 members confirmed, none hierarchy-related) — this exists purely so the normalizer's default branch and the group-sort switch stay exhaustive if GitHub ever adds one.

Exported named types / functions at the module boundary

// project-view.ts
export type RawFieldValue = { … }
export type RawContent = { … }
export type RawItem = { … }
export function itemContentSelection(includeParent: boolean): string
export const FIELD_CONFIG_FRAGMENT: string
export const FIELD_VALUES_SELECTION: string

// column-widths.ts
export function minColumnWidthFor(field: GitHubProjectField): number
export function buildProjectGridTemplate(fields, widths): string

GraphQL selection (fixed)

... on Issue {
  id number title url state stateReason
  repository { nameWithOwner }
  assignees(first:5) { nodes { login name avatarUrl } }
  labels(first:10) { nodes { name color } }
  issueType { id name color description }
  parent { number title url }
  subIssuesSummary { total completed percentCompleted }
  trackedIssues(first: 5) { nodes { number title url } }
  trackedInIssues(first: 5) { nodes { number title url } }
}

Evidence

1. Schema verification (live introspection, 2026-07-14)

ProjectV2ItemFieldValue.possibleTypes = 12 members (date, iteration, label, milestone, number, pull-request, repository, reviewer, single-select, text, user, and the non-union ProjectV2ItemIssueFieldValue object). No sub-issue-progress/tracked-issues/tracked-by-issues member exists. GitHub also deprecated the Tracked/Tracked by Project fields in Feb 2025 — the Issue-level trackedIssues/trackedInIssues are what survive.

2. Unit + integration test results (all real runs, this session, post-fix)

Suite	Result
src/main/github/project-view.test.ts	36 passed (27 pre-existing + 6 normalizeItem cases + 3 new GraphQL-syntax regression tests)
src/renderer/.../ProjectCell.test.tsx	5 passed (new file)
src/renderer/.../column-widths.test.ts	4 passed (new file, tests the real buildProjectGridTemplate)
src/main/github + src/renderer/.../github-project + src/shared (full sweep)	2826 passed, 4 skipped, 0 failed (277 files)
pnpm tc:node / tc:cli	clean
pnpm tc:web	clean except one pre-existing, unrelated Monaco editor type mismatch in monaco-setup.ts

3. Live GraphQL verification (post-fix)

Sent the actual fixed query string extracted from project-view.ts (not a hand-written approximation) to https://api.github.com/graphql against CodigoSinSiesta/1:

15 items returned. Issue #37 content:
{
  "subIssuesSummary": { "total": 3, "completed": 0, "percentCompleted": 0 },
  "trackedIssues": { "nodes": [] },
  "trackedInIssues": { "nodes": [] },
  ...
}

4. Pipeline verification — real normalizeItem against real API data

Fed the exact raw JSON above into the actual (not reimplemented) normalizeItem() function via a throwaway vitest spec:

outcome.ok === true
outcome.row.content.number === 37
outcome.row.content.subIssuesSummary === { total: 3, completed: 0, percentCompleted: 0 }

1/1 passed. (Spec deleted after producing this evidence — not part of the permanent suite; the permanent regression coverage lives in the two new test files listed above.)

5. Visual evidence — real Orca app, real data, real render

Connected via CDP directly to a freshly-launched Orca dev build (pnpm dev, own process, no auth wall — distinct from the headless browser tool and from computer-use, both of which hit real environment limits: no GitHub session and permission_denied on macOS Accessibility respectively). Navigated the actual native "GitHub Project" panel (not a web page) to CodigoSinSiesta/1 → "Prioritized backlog", and captured:

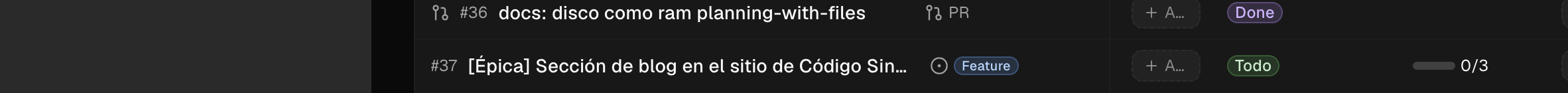

Row #37 ("[Épica] Sección de blog en el sitio de Código Sin Siesta") shows the Sub-issues progress cell with a progress bar and 0/3 — matching the live API's subIssuesSummary exactly. Confirmed via direct DOM query (role="progressbar", textContent: "0/3") before the screenshot; the column-width fix (Bug 2 above) was required to make it visible instead of clipped to 0px.

Permanent regression coverage added

• project-view.test.ts — describe('GraphQL query fragment syntax', ...): asserts itemContentSelection(), FIELD_CONFIG_FRAGMENT, and FIELD_VALUES_SELECTION contain no // (invalid GraphQL comment syntax), plus a brace-balance check. Cheap syntax-shape guard, not a full GraphQL parser (the project has no direct graphql dependency to lean on), but it locks the exact failure mode that shipped in Bug 1.
• column-widths.test.ts (new file) — asserts minColumnWidthFor(SUB_ISSUES_PROGRESS) exceeds the generic floor, resolveWidth honors the per-field floor over a stored value that only clears the generic one, and buildProjectGridTemplate (the real function ProjectViewList renders with, not a parallel copy) emits the wider minmax floor for that column.

Known limitations

• TRACKS/TRACKED_BY columns are usually empty in real projects since GitHub deprecated the corresponding Project fields in Feb 2025; the renderer works via the surviving Issue.trackedIssues/trackedInIssues, but most real-world projects won't populate it.
• Parent issue column doesn't appear in CodigoSinSiesta/1's "Prioritized backlog" view because that view's own field list (configured on GitHub, not in Orca) doesn't include it — getAvailableColumns only surfaces fields the view exposes. Add it to the view's columns on GitHub to see it in Orca.

References

• RFC: docs/reference/2026-07-14-github-projects-hierarchy-traceability-design.md
• Original plan (halted at step 5 on a false premise about union members): local://github-projects-hierarchy-phase1-plan.md
• Revised plan (this phase): local://github-projects-hierarchy-phase1b-redirect-plan.md
